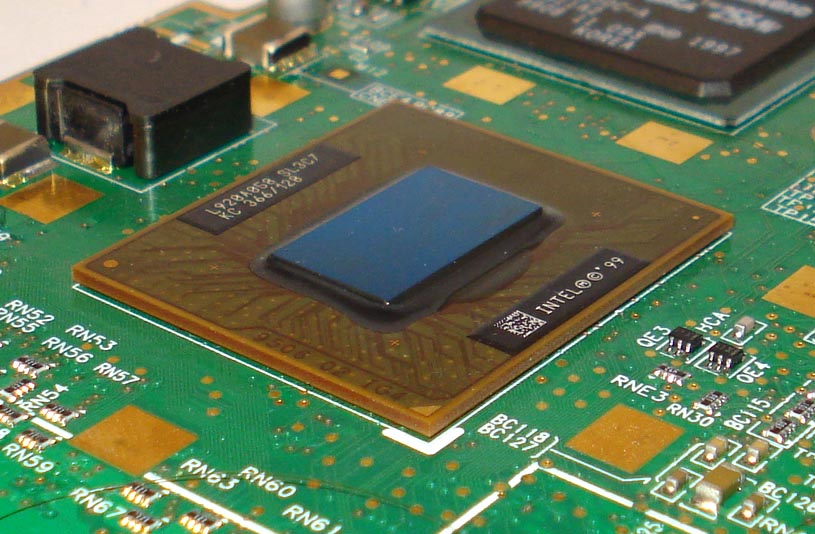

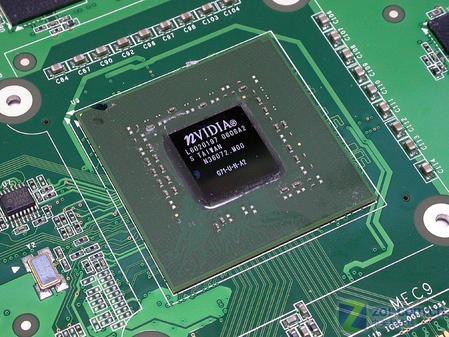

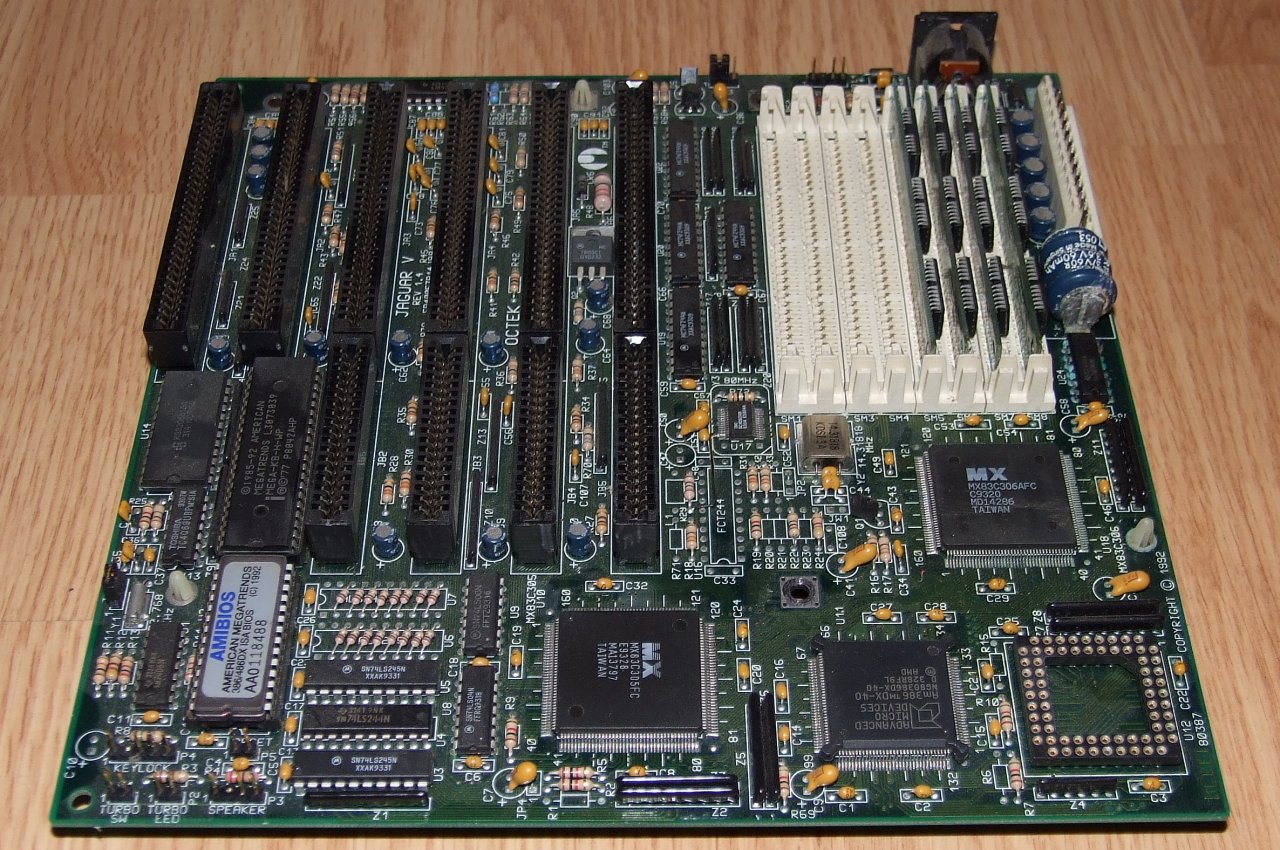

PCB Design

Glorious Circuit technologies is one of the leading PCB design solutions provider. We offer engineering expertise in the area of PCB Design under one roof. GCT’s goal is to provide proper service and quality products to the clients.

GCT Ability

  • High speed digital, Mixed Signal, Analog & Power boards
  • Fine pitch micro BGA designs
  • Power supply, Backplanes
  • S/S, D/S & Multilayer Rigid PCB
  • Thru-Holes, SMT/BGA HIGH Density (Double Side Placement)
  • Controlled Impedance
  • Blind/Buried Vias & Micro Vias
  • Design technologies with stacked and staggered µ via HDI technology

CAM Verification and Ability

  • IPC net list verification
  • Gerber Files Panelization for cost effectiveness
  • Coupon creation
  • DFM - Editing

PCB Design Services

  • Schematic Entry
  • Mechanical Constraint
  • Blind/Buried Vias & MicroVia
  • High Speed Backplane
  • Controlled Impedance: Single Ended / Differential
  • Analog, Digital & Mixed
  • Power Supply Boards
  • CAD Files Translation
  • EMI/EMC Technique
  • DFM/DFT/DFA
  • Signal Integrity Simulation

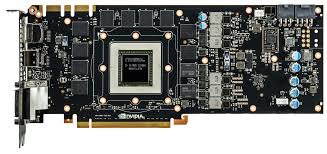

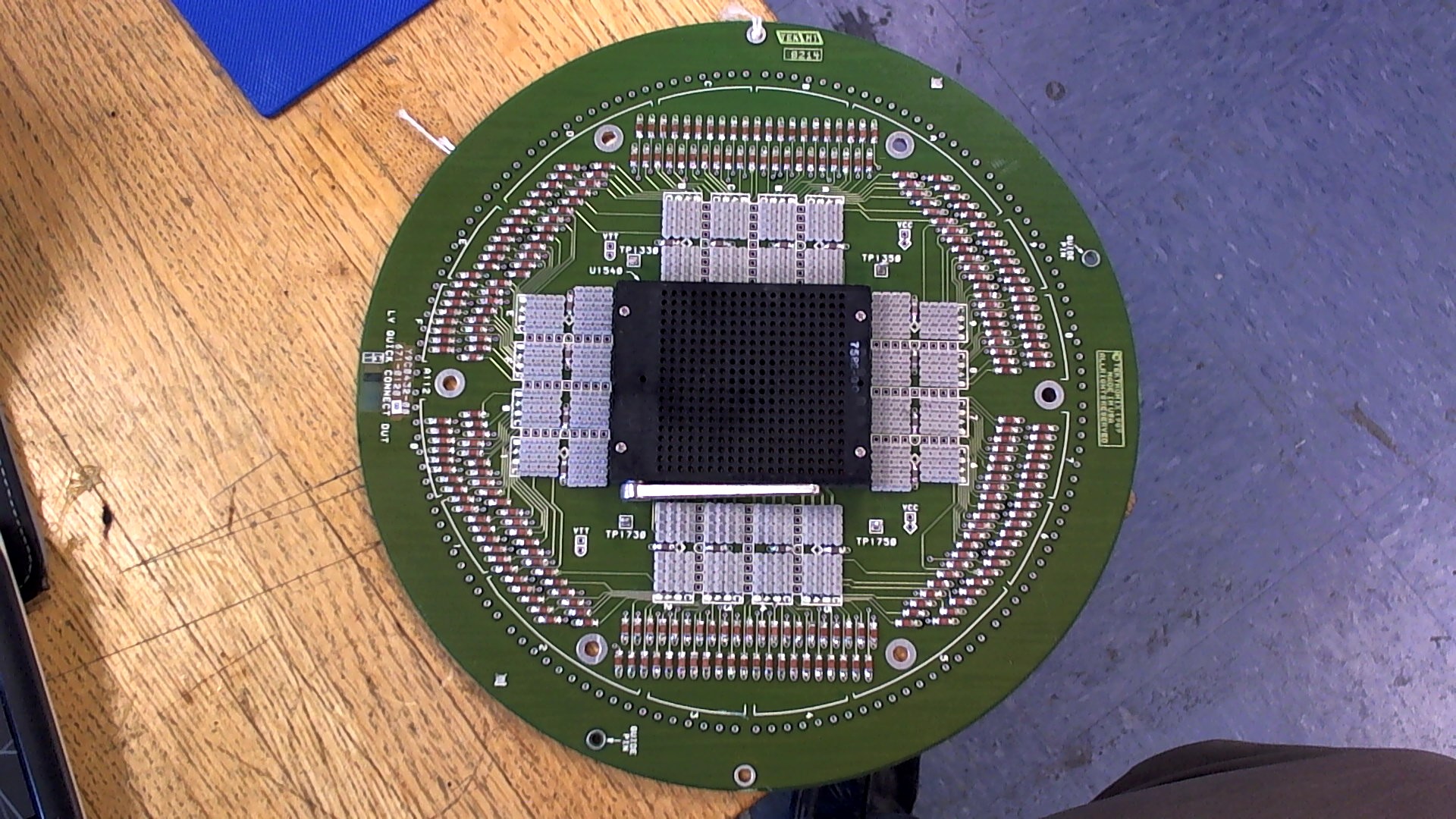

PCB Fabrication

Glorious Circuit technologies is one of the leading PCB design solutions provider. We offer engineering expertise in the area of PCB Fabrication under one roof. GCT’s goal is to provide proper service and quality products to the clients.

CAPABILITIES

  • Digital & Analog, Mixed Signal
  • Power Supply, Backplanes
  • S/S, D/S & Multi-layers Rigid PCB
  • Thru-Holes, SMT/BGA HIGH Density (Double Side Placement)
  • Controlled Impedance
  • Blind/Buried Vias
  • High Speed
  • Audio & Video
  • Flex & Rigid Flex PCB

FLEXIBLE CIRCUIT (FPC & RIGID-FLEX)

  • Single, Double Sided & Multilayer FPC
  • Rigid-Flex FPC
  • Material : Polymide & Polyester
  • Min Line Width/Spacing – 3/3mils
  • Minimum Hole : 6mils
  • Surface Finish : Ni/Au, Sn/Pb, PB Free & HASL.

PCB Assembly

Glorious Circuit technologies is one of the leading PCB design solutions provider. We offer engineering expertise in the areas of PCB Assembly under one roof. GCT’s goal is to provide proper service and quality products to the clients.

CAPABILITIES

  • SMT from 0201 and Through Hole
  • One-sided as well as double-sided, multi-layers PCB assembly
  • Simple to very complex and Flex PCB assemblies
  • Capability to handle any devices including BGAs, QFNs, DFNs, CSPs, Flip Chip etc
  • Small quantities and quick turns available
  • Consigned Components or Turnkey
  • RoHS & Lead-Free Assembly

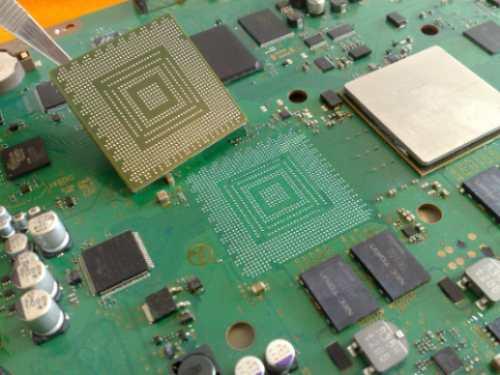

  • BGA rework and Flip Chip rework services, X-Ray equipment available
  • Automated Optical Inspection (AOI)
  • In-circuit and Functional Test (ICT & FCT)
